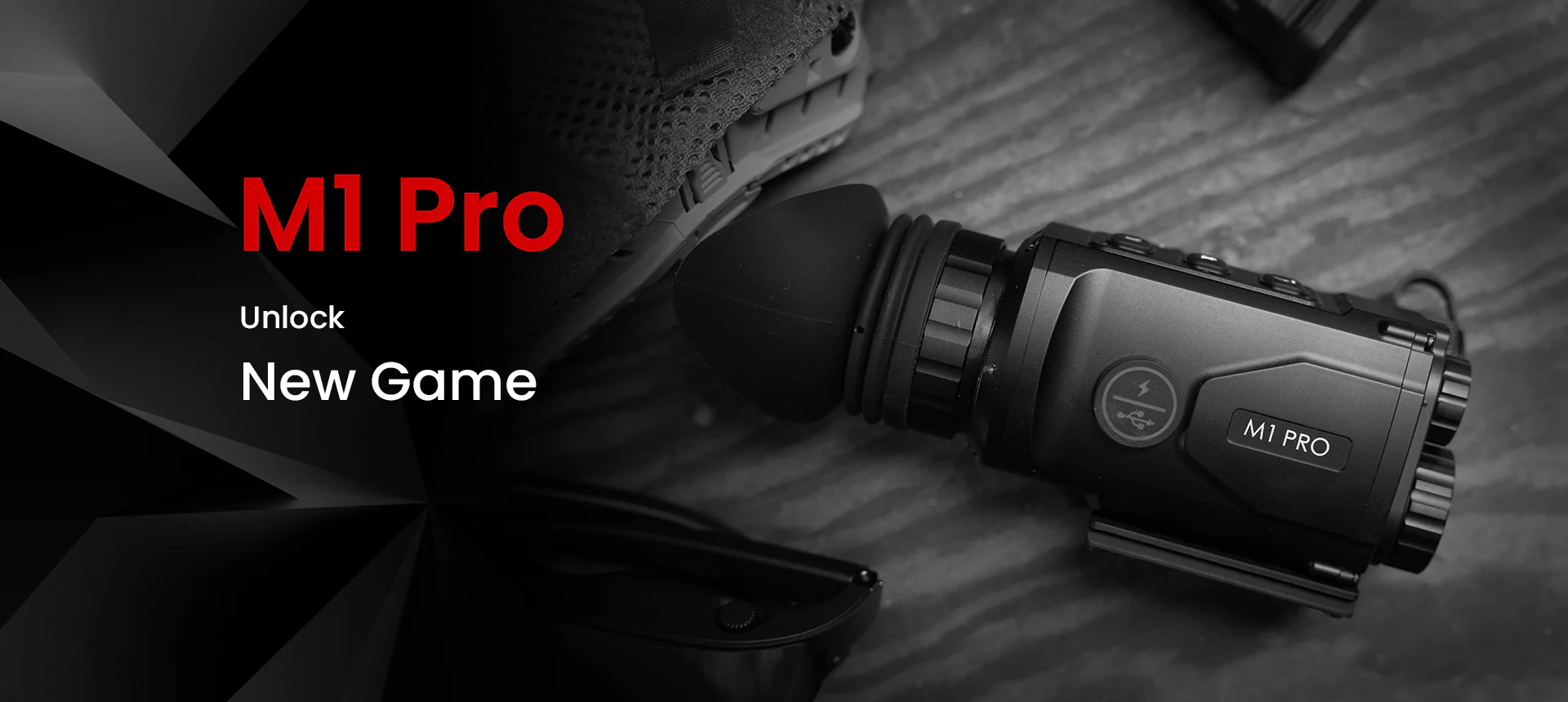

M1Pro Image Fusion Monocular 640×512 Thermal + Military Grade NightVision + 800LRF
Original price was: $6,500.00.$6,499.00Current price is: $6,499.00.
Description

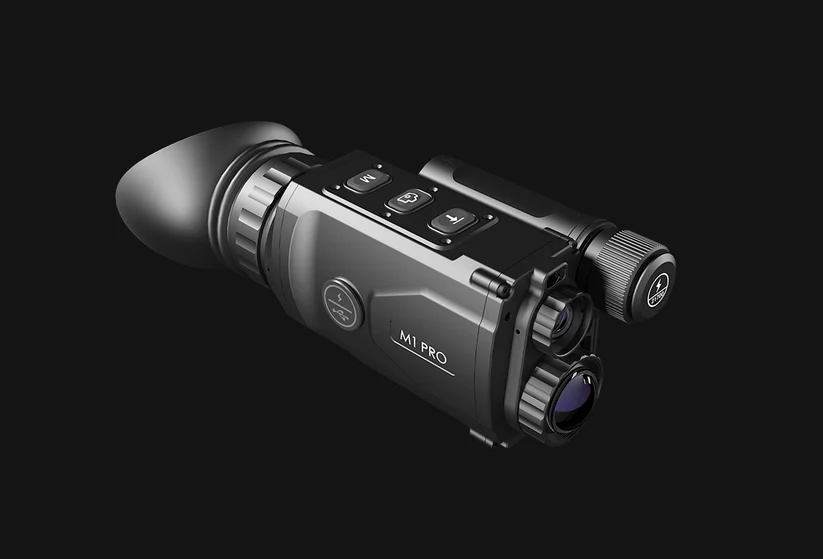

The Shinenyx M1 Pro is a next-generation thermal and night vision monocular engineered for serious professionals and demanding enthusiasts. Powered by Fused Image Technology, the M1 Pro delivers four advanced viewing modes—Black and White night vision, White hot Thermal, Color Fusion, and Color Negative Fusion for unmatched situational awareness.
Built for versatility, the M1 Pro can be used as a handheld monocular, weapon-mounted scope, or integrated with the new Shinenyx Night Ops Glasses. A built-in laser rangefinder, IR illuminator for complete darkness, onboard video and audio recording, and removable rechargeable batteries make this optic as practical as it is powerful.
With 2/4/8x magnification, a generous 2.1 inch display, 640 thermal detector and military grade NV performance, the M1 Pro ensures no detail goes unnoticed. Its proprietary E2E Aspherical Lenses deliver distortion-free edge-to-edge clarity, while the exclusive Rapid Target Outline (RTO) technology highlights heat signatures with a red outline—giving you instant, precise target acquisition in any environment.

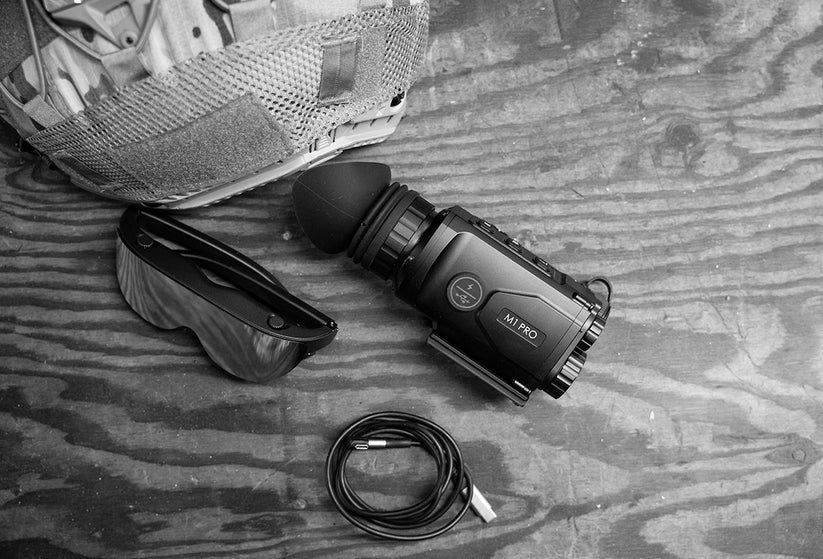

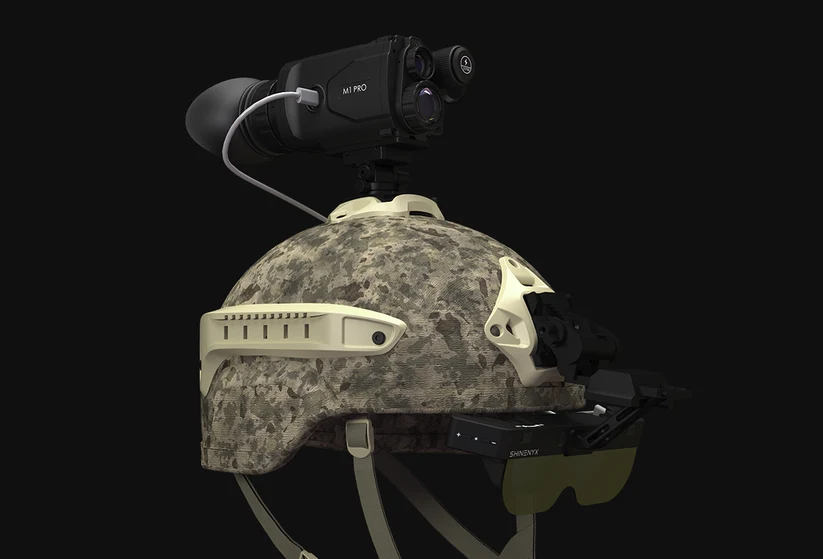

For extended operations, pair the M1 Pro with Shinenyx smart sync Glasses. The monocular mounts directly to a helmet and connects to the glasses via the included USB-C to USB-C cable, enabling comfortable, hands-free surveillance or long-duration hunts.
The M1 Pro isn’t just another optic—it’s a complete thermal + night vision solution built for those who demand performance, reliability, and adaptability.
Shinenyx Smart Sync (SSS) Technology

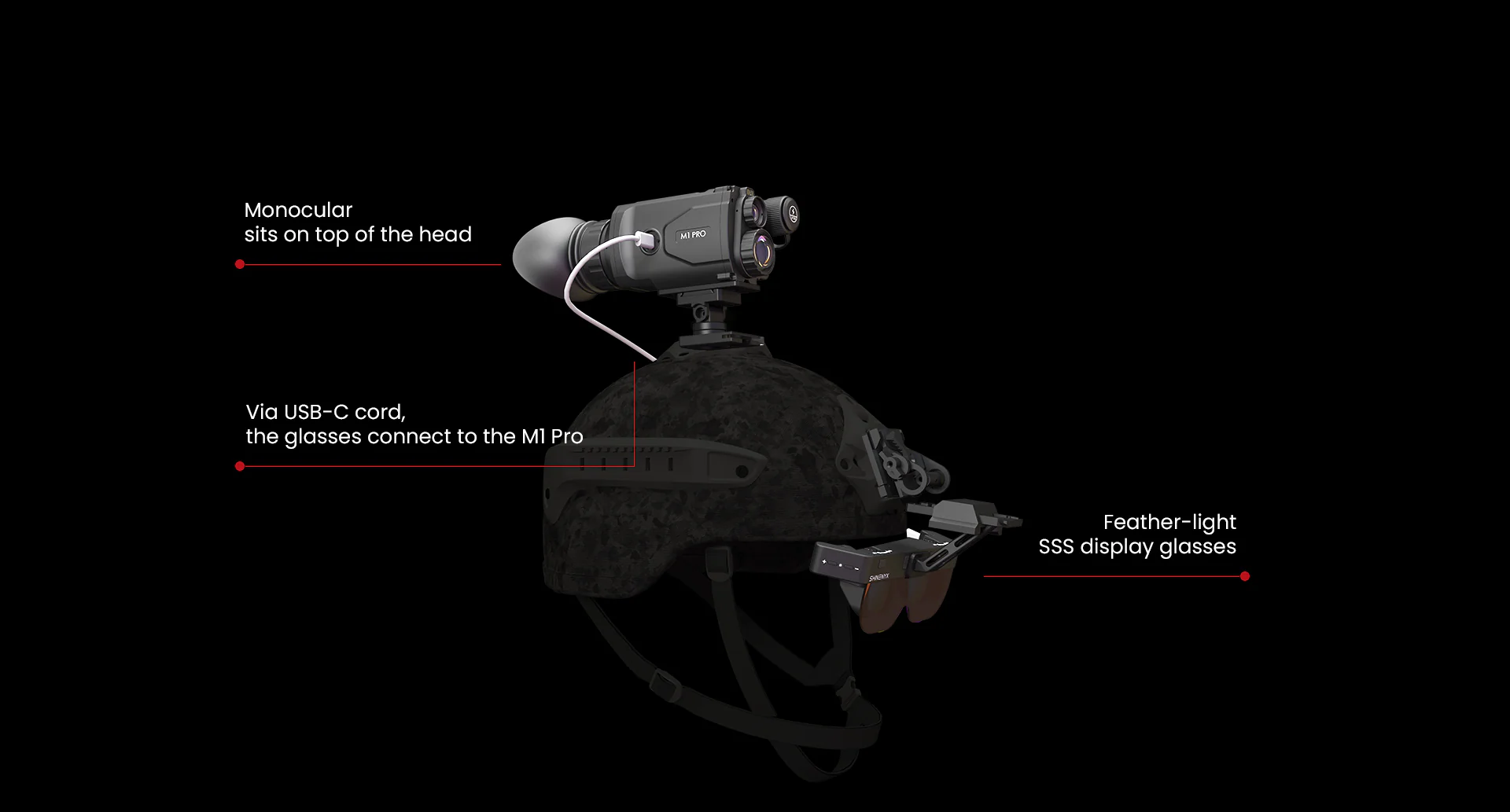

Freedom Through Separation
SSS Technology separates the imaging unit from the display unit, placing each where it performs best. The M1 Pro handles image capture, while lightweight glasses provide the display—delivering comfort, balance, and truly hands-free operation.
Transparent, Dual-World Vision
The display in SSS glasses is not just stereoscopic—it’s transparent. Hunters can see both the monocular thermal DNV (Digital Night Vision) image and the real world simultaneously, eliminating the limitations of traditional optics.
Proven in the Field

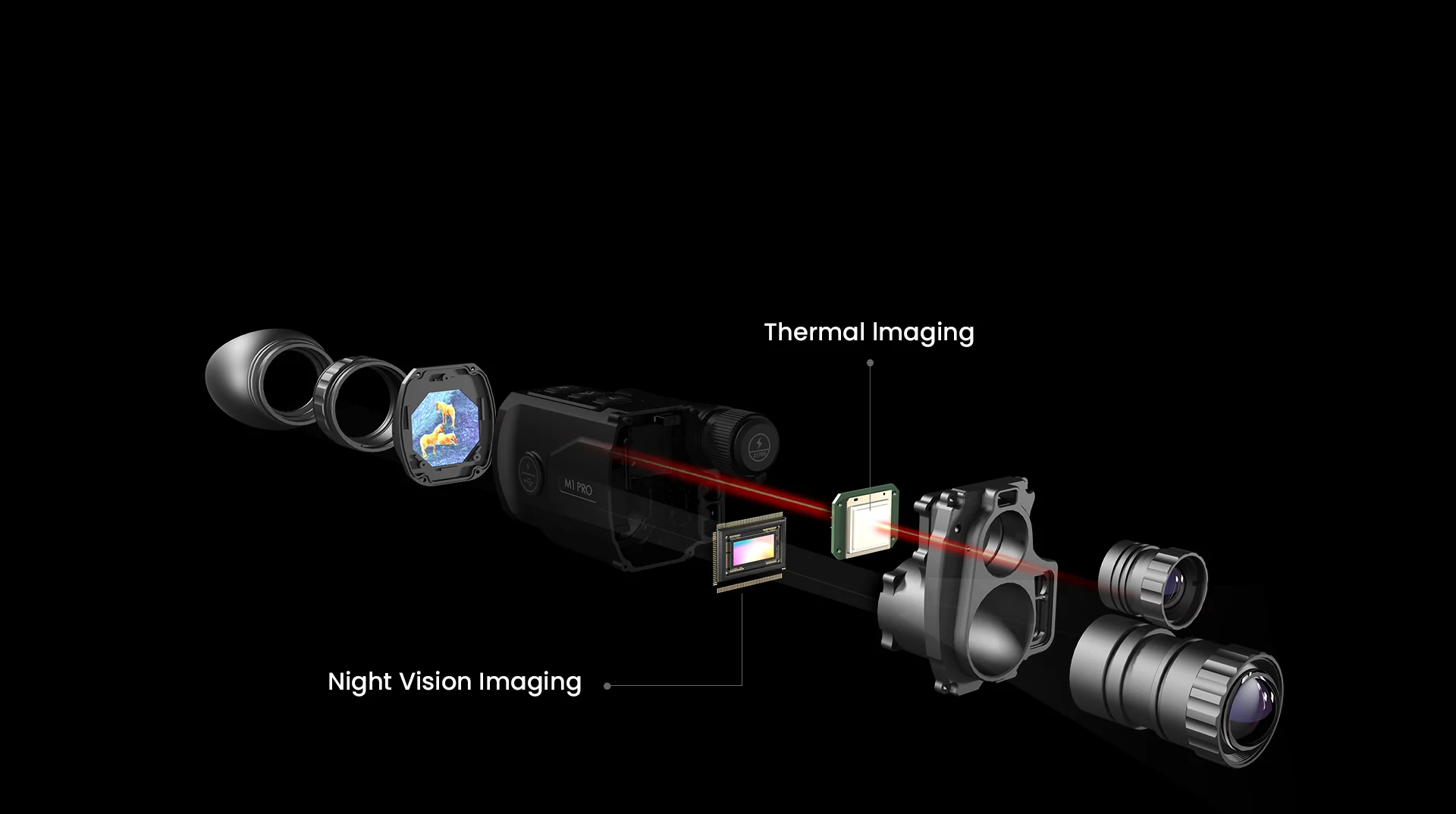

F.I.T.

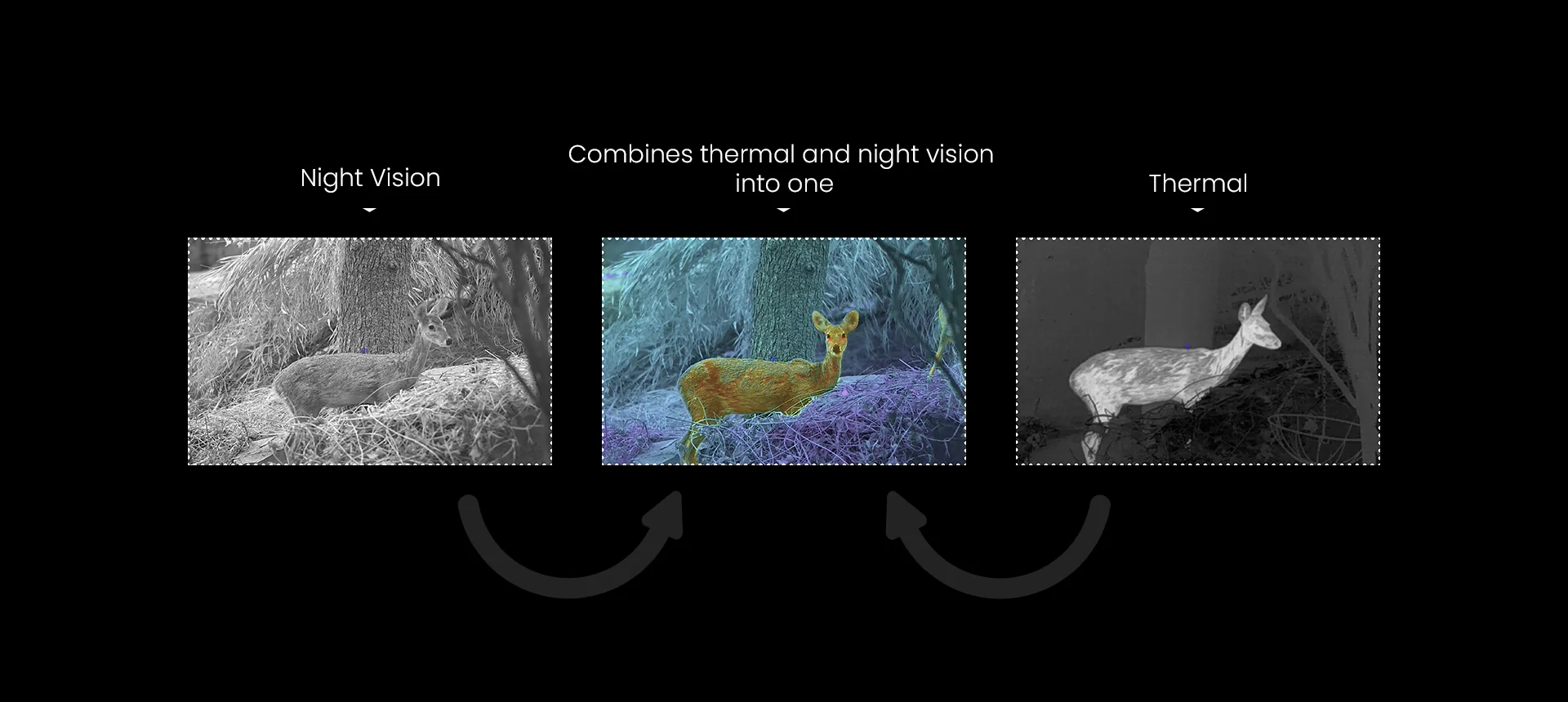

Seamlessly blend thermal imaging and night vision in real time into a single, perfect image, allowing you to switch between the two or merge them together.
- Seamless transition between day and night
- No need to swap or carry extra optics
- Perfect for unpredictable weather and extended hunts
RTO Mode
- A constant red contour can obscure portions of the target and reduce precise identification.
- While highly visible for detection at long range, it’s less optimal for positive target confirmation at closer distances.
- The red outline appears for a brief interval to assist in rapid target detection.
- It then disappears for a few seconds, allowing unobstructed visual confirmation.
- This cycle repeats automatically, eliminating the need for manual mode switching during high stress scenarios.
2.1 inch Screen
10X bigger than competitors’
0.7/0.5/0.39 inch nail-sized gadgets
1.7 inch Detector
10x Bigger
10X Better Night Vision
than common Products on the market
Versatile
Only 21oz

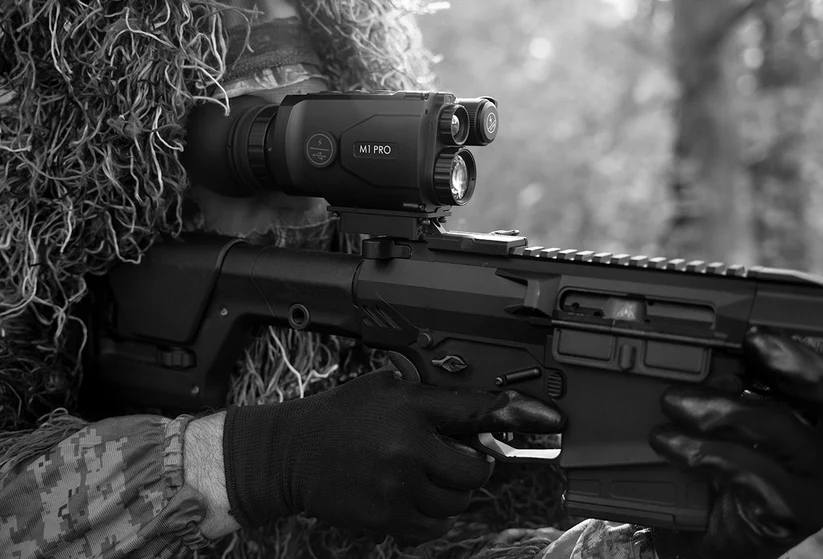

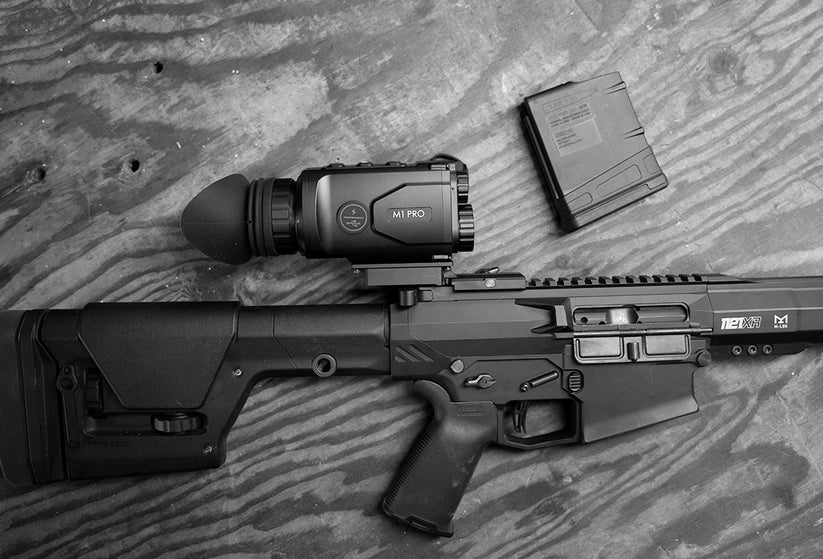

Rifle Mount
Versatile
Only 17oz

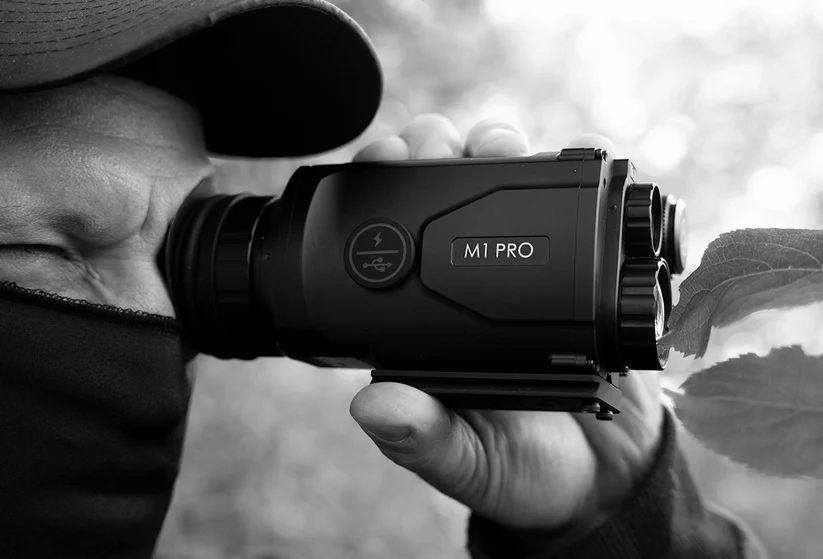

Hand Hold
Versatile
Only 18oz

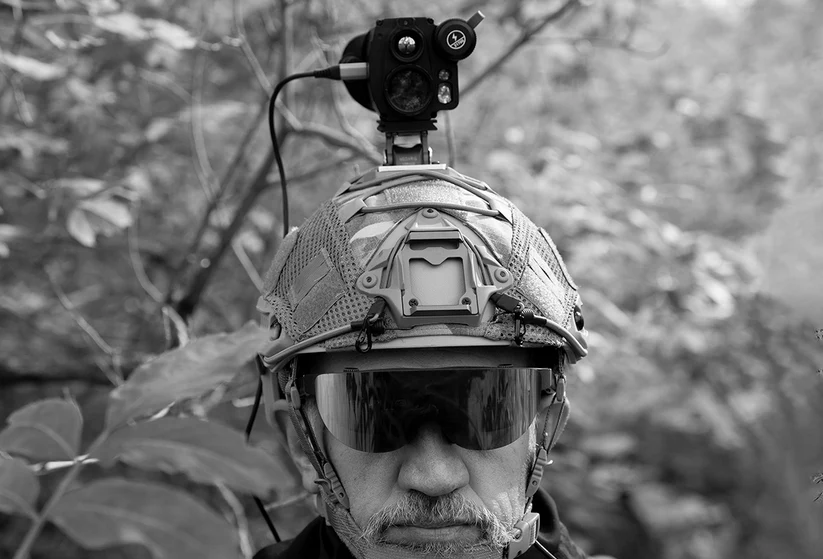

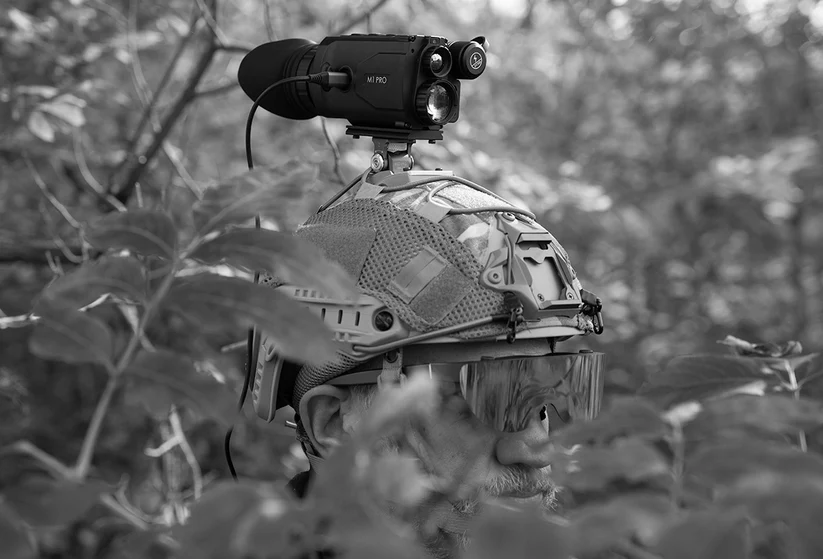

Helmet Mount

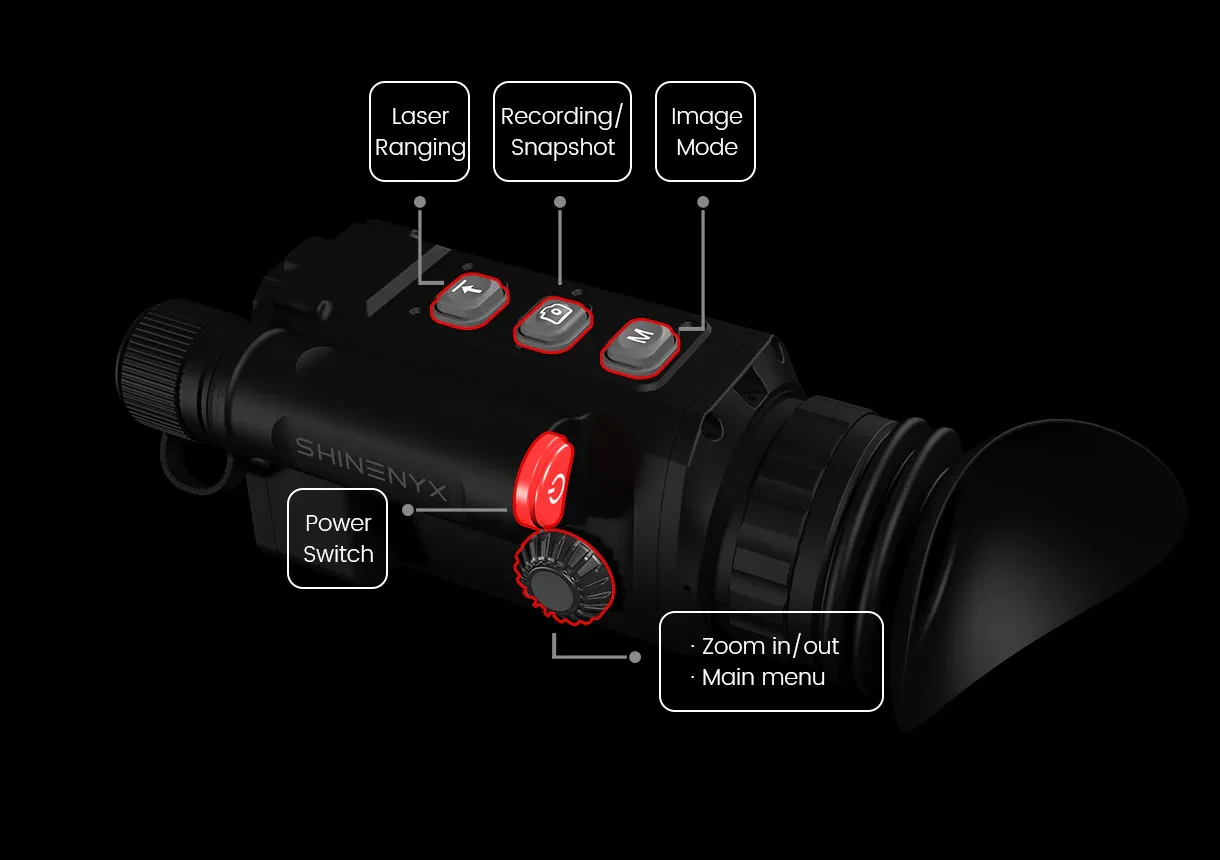

Simple to use
Use physical shortcuts and attitude
control for the most-used features



- Roll left: activate laser rangefinder
- Roll right: change reticle color
- No need to remove your hand from the rifle or navigate deep menus
Specification
| M1 Pro | |||
| Dual-camera | Night Vision | Thermal | Fusion |
| Detector Resolution | 1920×1200 | 640×512 | 1920×1200 |
| Detector Size | 1.7 inch | 0.6 inch | |
| Imaging Mode | Black&White | White Hot | Colorful Fusion/Colorful Negative Fusion |
| Lens Focus Length | 35mm | 13.5mm | |
| Field of View | 37° x 23° | 31° x 23° | |
| Focus Mehod | Manual Rotation | ||
| Recognition Enhancement | RTO(Outline Heat Target) | ||
| Frame Rate | 25Hz | ||
| Viewfinder | 2.1inch, 1600×1200 LCD | ||
| Glasses | 0.7 inch, 1920×1200 OLED | ||
| Field of View through eye piece | 31° x 23° | ||
| Field of View through Glasses | 37° x 23° | ||
| Magnification through eye piece | 2X / 4X / 8 X | ||
| Magnification through Glasses | 1X / 2X / 4X | ||
| Detect Hog Target | Up to 400 yards | ||
| Recognize Hog Target | Up to 250 yards | ||
| Ranging Range | Up to 800 yards | ||
| Build-in Storage | 128G(about 15h) | ||
| Recording Resolution | 1920*1200@25fps | ||
| Electronic Compass | Indicates Direction and Angle of Pitch | ||
| IR illuminator | Up to 100 yards, recommended for in cave or indoor at night, not outdoor open area | ||
| USB-C | USB-C(Video&Photo Copy/Power Supply/Battery Charge/Firmware Upgrade/Live Video Output) | ||
| Power Supply | 21700 Batteries/USB-C Interface | ||
| Battery Life | Up to 6 hours | ||
| Battery Life with glassess | Up to 4 hours | ||
| Operating Temperature | -20°F~+110°F | ||
| Ingress Protection | IPX6 | ||
| Weight | 18.7 ounces(With Batteries) | ||
| Dimension | Exclude Eyepiece Cover:143 x 74 x 70mm | ||
